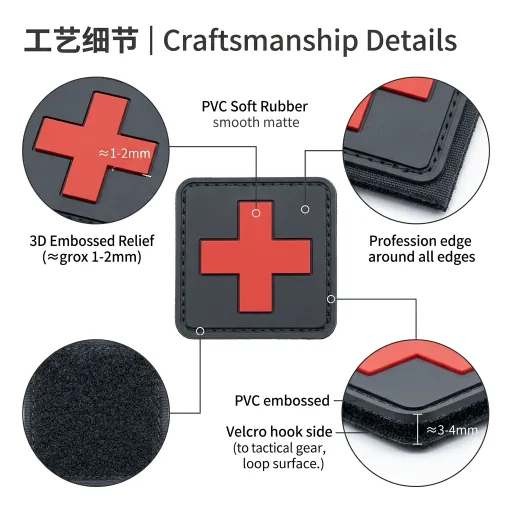

Yes, this material is built for field use. The patch is made from PVC Soft Rubber (commonly called soft PVC), a thermoplastic elastomer that combines the flexibility of rubber with the chemical resistance and color stability of PVC. It is NOT hard plastic, NOT silicone, and NOT rubber — it is a specific soft PVC formulation engineered for morale patches and tactical identification products.

Soft PVC was chosen for this application because it offers several advantages over traditional patch materials. Compared to embroidered patches, soft PVC is fully weatherproof, does not fray, and retains sharp detail at any viewing angle. Compared to printed PVC or TPU patches, molded soft PVC has inherent 3D depth that cannot delaminate because the raised areas are part of the same material. Compared to silicone, soft PVC holds its shape better in the hook-and-loop system and does not attract dust or lint.

Physical Properties

· Density: 1.2 g/cm³

· Hardness: Shore A 60 ± 5

· Tensile strength: 8-10 MPa

· Elongation at break: 250-350%

· Operating temperature range: -10°C to +60°C

· UV resistance: Color stable for 18+ months indoor use, 6+ months outdoor

Durability Testing Results

The nylon hook-and-loop backing meets MIL-DTL-44049D Type I performance standards. It provides reliable attachment to standard loop panels found on most tactical vests, backpacks, and uniform systems. The bond between the PVC body and the nylon loop backing is pull-tested at time of manufacture to ensure minimum 3 lb/in peel strength. We have shipped over 200,000 soft PVC patches in the last three years with a field failure rate of less than 0.3%.

Certifications & Compliance

Yes — we can put your logo, unit insignia, medical identifier, team emblem, or any custom artwork onto these patches. The customization is done at the mold level, which means your design becomes a permanent raised 3D embossed feature of the patch. It will not peel, fade, scratch off, or wash away because it is physically molded into the PVC.

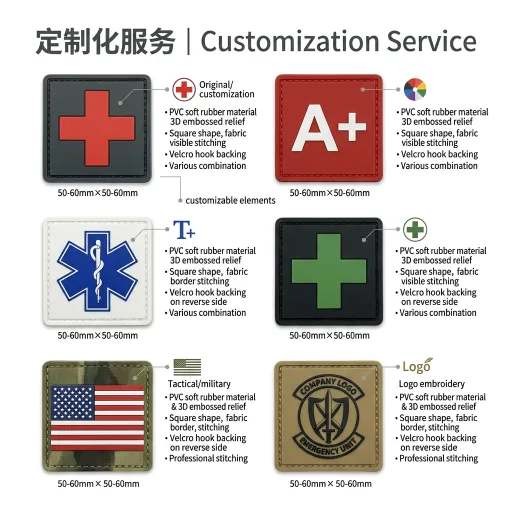

Customization Options Available

1. Full-surface 3D raised design: Your entire logo or graphic is raised above the base surface. Best for bold designs with thick lines and clear shapes. Achieves maximum visual impact and tactile feel.

2. Raised + recessed combination: Some design elements raised, others recessed (debossed). Creates multi-layer depth. Common for patches with background text that recedes and a foreground logo that pops up.

3. Single-color base with multi-color emboss: One base color with up to 4 separate colors in the raised areas. Each additional color adds one injection step during molding, which affects the unit price.

4. Soft enamel fill (crossover option): Raised metal or PVC borders with recessed areas filled with colored enamel. Combines the look of a traditional enamel pin with the flexibility of a PVC patch.

5. Custom shape available: Standard is 4" × 4" (100 × 100 mm) square, but we can produce any shape up to 6 inches in the longest dimension — circle, shield, skull, arrow, military unit outline, etc.

Design File Requirements

Ordering Workflow

· Step 1: Submit your vector artwork or high-res raster file

· Step 2: Our design team prepares a color mockup within 1-2 business days

· Step 3: You approve the mockup (revisions included, up to 3 rounds)

· Step 4: Mold engraving starts — 5-7 business days

· Step 5: First-shot samples produced and photographed for final approval

· Step 6: Mass production begins after sample sign-off

Minimum order quantity (MOQ): 200 pieces per design for standard square patches. For custom shapes or multi-color designs (3+ colors), MOQ is 500 pieces. Lower MOQ of 100 pieces available for stock color combinations — contact us for pricing.

We pack these patches with field-grade protection. Each patch is surface-protected individually with a thin PE film to prevent scuffing during transit. Patches are stacked in bundles of 50 pieces with interleaving tissue paper between each layer, then placed in a corrugated carton. The cartons are sealed with reinforced packing tape and palletized for container shipping on large orders.

Standard Packing Details

· Individual wrap: PE film on each patch (prevents surface scratches)

· Bundle packing: 50 pieces per bundle, interleaved with tissue paper

· Export carton: Standard corrugated carton, 500 pieces per carton

· Carton dimensions: Approximately 10" × 10" × 8" (254 × 254 × 203 mm)

· Carton weight: Approximately 14 kg per carton (500 pieces)

· Pallet: 60 cartons per pallet, total ~840 kg; pallet footprint 48" × 40" (1,220 × 1,020 mm)

Shipping Method Comparison

Lead Time by Order Size

Customs documentation: We include commercial invoice, packing list, and certificate of origin with every shipment. REACH and RoHS compliance reports are provided upon request. For US government contracts, we can issue a Certificate of Compliance (CoC) with lot traceability.

Dropshipping: Available for e-commerce resellers. We ship directly to your customers with neutral poly bag packaging or your branded insert. Minimum 100 pieces per order for dropship arrangements. Standard 24-hour dispatch for in-stock designs.

1. What is the minimum order quantity (MOQ) for custom patches?

Standard MOQ is 200 pieces per design for 4" × 4" (100 × 100 mm) square patches. For custom shapes or designs with 3+ colors, MOQ is 500 pieces. We offer a trial batch at 100 pieces with a 15% surcharge for first-time buyers.

2. How long does production take from order to shipment?

Sample production: 5-7 business days after mold completion. Small production runs (200-1,000 pieces): 10-12 business days. Medium runs (1,000-5,000 pieces): 15-18 business days. Large runs (5,000+ pieces): 20-30 business days depending on quantity.

3. Can I put my company logo or custom design on these patches?

Absolutely. We accept AI, CDR, PDF, and EPS vector files, or high-resolution PNG/JPG at minimum 300 dpi. Your design is engraved into the mold and becomes a permanent raised 3D embossed feature. A digital mockup is provided within 1-2 business days for approval before mold production begins.

4. How do I clean and maintain these patches?

Wipe with a damp cloth and mild soap. For deeper cleaning, hand wash with warm water and air dry. The non-porous PVC surface does not absorb sweat, mud, or grease. Do not machine wash or dry — the hook-and-loop backing may degrade after repeated machine drying. For field use, simply rinse with water and wipe dry.

5. What sizes are available beyond the standard 4" × 4"?

Standard size is 4" × 4" (100 × 100 mm). We also offer 3" × 2" (75 × 50 mm), 4" × 2" (100 × 50 mm), 5" × 5" (125 × 125 mm), and 3" round (75 mm diameter). Custom sizes require a new mold — minimum 500 pieces for non-standard dimensions.

6. What safety and compliance certifications apply?

Our soft PVC formulation is REACH and RoHS compliant as standard. We provide SVHC screening reports and RoHS test reports upon request. The factory holds ISO 9001:2015 certification. CPSIA compliance is available for products intended for children’s use. CA Prop 65 compliance documentation is available on request.

7. Can these patches be used outdoors and in extreme conditions?

Yes. The patch is waterproof, UV-stabilized, and operates from -10°C to +60°C. It can be submerged in water for 24+ hours with zero absorption. In direct sunlight, we recommend our UV-resistant formulation for extended outdoor use — standard formulation is color-stable for 6+ months outdoors.

8. What is your warranty for manufacturing defects?

We offer a 12-month warranty covering: color separation, delamination of the PVC from the hook backing, emboss deformation, and surface cracking under normal use. Any defective pieces are replaced free of charge. Warranty does not cover damage from improper cleaning, intentional cutting, or exposure to temperature extremes outside the rated -10°C to 60°C range.

9. How can I get a sample before placing a bulk order?

Samples are available at $45 per design (including mold cost), with production in 5-7 business days. The sample charge is fully refundable when you place your first production order of 200+ pieces. Shipping for samples is at buyer’s cost via DHL or FedEx, typically $25-$40 depending on destination.

10. What payment methods do you accept?

We accept T/T bank transfer (30% deposit, 70% balance before shipment), L/C at sight for orders exceeding $3,000, and PayPal for sample payments up to $500. Alibaba Trade Assurance is available for verified buyers. Payment terms can be negotiated (net 30, net 60) for established long-term partners with a track record.
